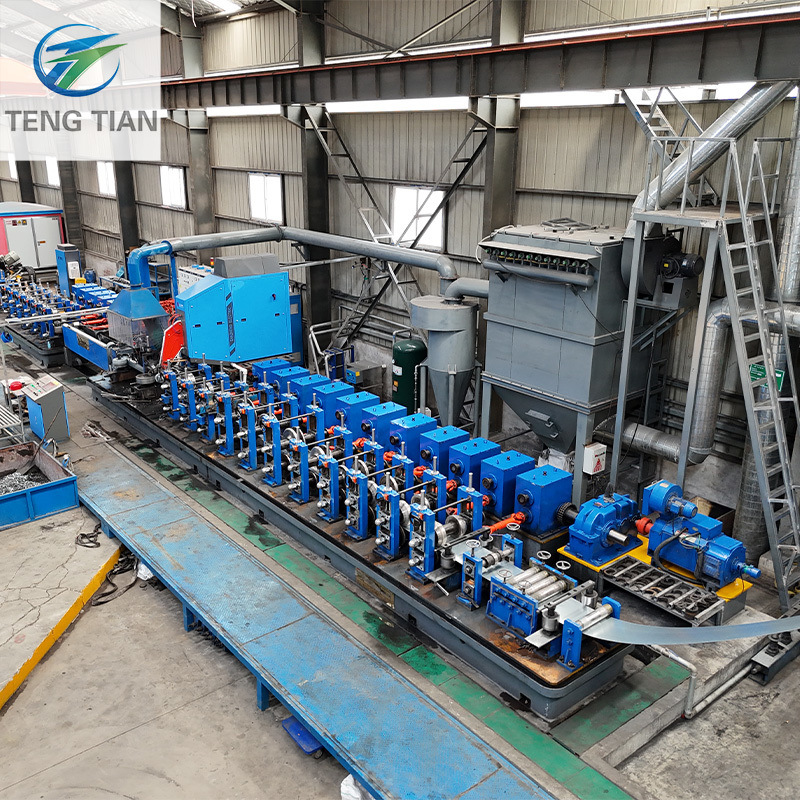

8-32mm 150m/min Carbon Steel High Frequency ERW Tube Mill
Product Specifications
| Attribute |
Value |
| Product name |
High Frequency Welded Pipe Mill Professional Automatic ERW Tube Mill, Carbon Steel Welded Pipe Mill |
| Production speed |
Max 150m/min |
| Pipe diameter |
8-32mm |
| Pipe thickness |
0.4-2.0mm |
| Product type |
ERW tube mill |
HG32 High Precision Automatic ERW Pipe Mill With High Frequency Welder
Production Process
material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table
Technical Parameters
| Stands of forming mill |
8 |
| Stands of sizing mill |
6 |
| Shaft material |
40Cr |
| Power of HF solid welder |
100kw |
| Round pipe diameter |
8-32mm |
| Round pipe thickness |
0.4-2.0mm |
| Square pipe size |
10×10-25×25mm |
| Square pipe thickness |
0.4-1.0mm |
This ERW pipe mill with high frequency solid welder can produce round pipes, square pipes, and rectangular pipes at high speed. It can also produce L, T, and Z shaped pipes, reducing roller costs while ensuring the quality of finished pipes.
We can customize the machine according to specific customer requirements.
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
