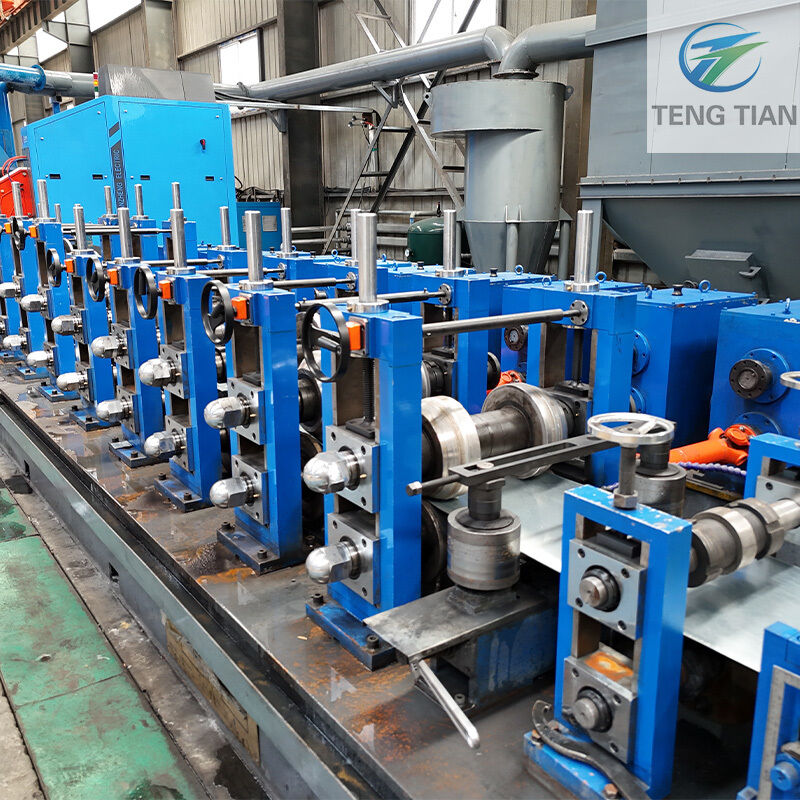

Φ114-Φ273 High Precision Welded Pipe Line
Product Overview
The Φ114-Φ273 High Precision Welded Pipe Line is a tube forming equipment designed to shape metal and other materials into high-precision tubes. It is widely used in manufacturing plants, construction works, energy & mining, and other industrial applications. The machine produces welded pipes from OD114mm to OD273mm with plate thickness of 4mm to 10mm.
| Attribute |
Value |
| Product Name |
Φ114-Φ273 High Precision Welded Pipe Line |
| Specification |
φ114mm-φ273mm |
| Plate Thickness |
4-10mm |
| Forming Speed |
15-30 |
| Voltage |
380V |
| Power |
1000KW |
| Area |
18m*160m |
Key Features
- Automatic Shear and Welder: Eliminates manual cutting and welding, saving time and labor costs
- High-Frequency Welding: Ensures strong and consistent welds for high-quality pipes
- Direct Forming Method: Provides precise control over shape and size for uniform products
- Optimized Roller Design: Calculated by weight for optimal performance and durability
- Versatile Applications: Suitable for automotive, aerospace, medical, electronics, and furniture industries
Technical Specifications
| Parameter |
Value |
| Material |
Carbon Steel, Stainless Steel, Copper, Aluminum |
| Tolerance |
±0.05mm |
| Length |
6m |
| Surface Treatment |
Pickling, Passivation, Polishing, Anodizing, Plating, Coating |
| Minimum Order Quantity |
1 Set |
Customization Options
Brand Name: TENGTIAN
Model Number: HG273
Certification: ISO CE
Delivery Time: 2-3 months
Payment Terms: LC TT
Packaging: Standard export package
Support & Services
- On-site installation and operator training by our engineers
- 1-year quality guarantee with free repair parts (excluding human error)
- Pre-sale services including workshop and production output design
- After-sale services including installation, training, and technical support
- Option for long-term engineer support (several months to 1 year)
- Full project design services for pipe making operations
Packaging & Shipping
All Precision Tube Mills are securely packaged in wooden crates or boxes with proper labeling. Shipments are made via ground or air freight (depending on size/weight) and fully insured for the item's value.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
